Wazuh + Suricata: injection detection

Objective

#

Investigate a SQL Injection attack detected by Wazuh and Suricata targeting a DVWA instance, triage alerts, identify the attack pattern and tooling, and configure automated response to block the attacker IP.

Environment

#

What Wazuh Detected

#

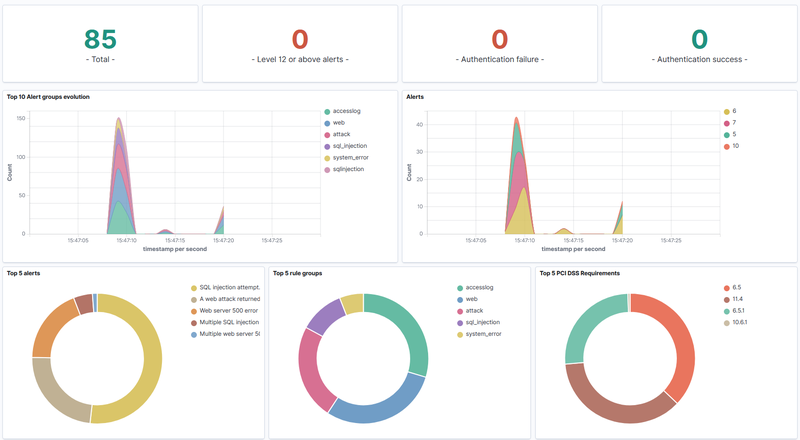

Wazuh generated 85 alerts from source IP 192.168.248.129 over approximately 2 minutes. The alert spike began at 15:47 UTC and corresponds to automated SQL Injection tooling activity. MITRE ATT&CK: T1190 - Exploit Public-Facing Application.

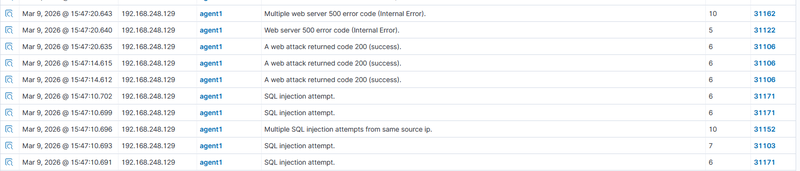

Six rule IDs were triggered during the attack:

Rules 31103, 31106, 31171, and 31122 fire per individual event. Rules 31152 and 31162 are correlation rules that aggregate multiple events into a higher severity alert (level 10).

- 16 HTTP 500 responses confirm injected payloads reached the database layer and caused query execution errors — a reliable error-based SQLi indicator.
- 20 HTTP 200 responses on rule 31106 mean a portion of payloads executed successfully and the server returned data.
- Rule 31152 (level 10) fired 4 times after the frequency threshold for repeated SQLi attempts from a single IP was reached.

Expanded view of a single Rule 31103 alert:

- Source IP: 192.168.248.129
- Target: 192.168.248.140
- URL: /dvwa/vulnerabilities/sqli/?id=1%27+UNION+SELECT+1%2C2--&Submit=Submit
- HTTP status: 500
- Tool: sqlmap/1.10.2#stable — confirmed via User-Agent header
- Technique: Boolean-based blind SQLi with CASE WHEN and CHR() functions
- MITRE: T1190 - Exploit Public-Facing Application
- Fired times: 28

 1{
 2  "agent": { "ip": "192.168.248.140", "name": "agent1", "id": "001" },
 3  "data": {
 4    "srcip": "192.168.248.129",
 5    "id": "200",
 6    "url": "/dvwa/vulnerabilities/sqli/?id=1%27%20AND%204076%3D%28SELECT%20%28CASE%20WHEN%20%28%28SELECT%20CHR%28102%29%7C%7CCHR%2881%29%7C%7CCHR%28122%29%7C%7CCHR%2898%29%20FROM%20SYSIBM.SYSDUMMY1%29%3D%27fQzb%27%29%20THEN%204076%20ELSE%20%28SELECT%209431%20UNION%20SELECT%207597%29%20END%29%29--%20QdwI&Submit=Submit"
 7  },
 8  "rule": {
 9    "id": "31103",
10    "level": 7,
11    "description": "SQL injection attempt.",
12    "firedtimes": 28,
13    "mitre": {
14      "technique": ["Exploit Public-Facing Application"],
15      "id": ["T1190"],
16      "tactic": ["Initial Access"]
17    }
18  },
19  "full_log": "192.168.248.129 - - [09/Mar/2026:14:17:26 +0000] \"GET /dvwa/vulnerabilities/sqli/?id=1%27%20AND%204076%3D...--QdwI&Submit=Submit HTTP/1.1\" 500 295 \"http://192.168.248.140/dvwa/vulnerabilities/sqli/\" \"sqlmap/1.10.2#stable (https://sqlmap.org)\"",
20  "timestamp": "2026-03-09T15:47:08.617+0000"
21}

The User-Agent string sqlmap/1.10.2#stable in the full log confirms the attack was conducted with sqlmap — no inference required. The decoded URL payload reveals a boolean-based blind injection technique using CASE WHEN logic and CHR() character functions, consistent with sqlmap’s database fingerprinting phase.

Suricata independently fingerprinted the source machine as Kali Linux via DHCP hostname at 15:44 UTC — before the web attack began — providing network-layer attribution unavailable from Apache logs alone.

Response

#

Active response was configured on the Wazuh Manager to automatically block the attacker IP via firewall-drop upon rule 31152 triggering. Configuration added to /var/ossec/etc/ossec.conf:

1<active-response>
2  <command>firewall-drop</command>
3  <location>local</location>
4  <rules_id>31152</rules_id>
5  <timeout>0</timeout>
6</active-response>

timeout is set to 0 — the block is permanent and requires manual review before removal. This is appropriate for a confirmed TP where the source IP shows no legitimate use case.

Conclusion

#

Wazuh successfully detected the SQL Injection attack out of the box, generating 85 alerts across 6 rule IDs. The attacker tool was confirmed directly from the User-Agent header (sqlmap/1.10.2#stable) without any inference. Correlation rules 31152 and 31162 fired automatically without custom configuration, and active response permanently blocked the attacker IP upon threshold being reached — without manual intervention.
