TL;DR

#

A Dridex loader DLL with minimal static imports (OutputDebugStringA, Sleep). It dynamically resolves all needed APIs at runtime using CRC32 hashing XOR-ed with 0x38BA5C7B, and calls them indirectly via int3/retn with a registered vectored exception handler — neutralizing debugger breakpoints in the process. Embedded strings are encrypted with RC4 using a 40-byte reversed key. After passing anti-VM and execution delay checks, it connects to four hardcoded C2 servers to download additional modules via InternetConnectW and InternetReadFile.

Initial Analysis

#

The binary was identified by CAPA as DridexLoader Payload and matched the YARA rule HeavensGate — indicating use of the Heaven’s Gate technique to switch from 32-bit to 64-bit mode at runtime.

Imports

#

Only two static imports were found:

1OutputDebugStringA
2Sleep

Exports

#

1.text:0x00009D70   .rdata:0x0003AB08   DllRegisterServer

Sections

#

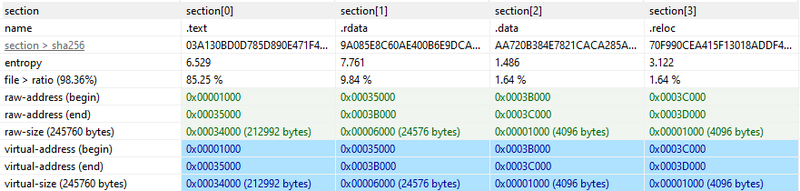

The .rdata section showed unusually high entropy of 7.761, suggesting compressed or encrypted data. The .text section had entropy of 6.529.

CAPEv2 Sandbox

#

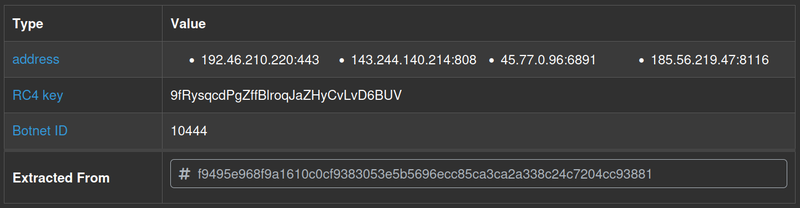

The anti-VM functionality limited sandbox visibility, but CAPEv2 successfully extracted the malware configuration — revealing four C2 servers and the RC4 encryption key used for communication:

1C2:  192.46.210.220:443
2     143.244.140.214:808
3     45.77.0.96:6891
4     185.56.219.47:8116
5RC4: 9fRysqcdPgZffBlroqJaZHyCvLvD6BUV

Static Analysis

#

Resolving API

#

Function mw_API_resolve is called twice from the entry point function, both times with the same value for the first parameters. For the second call, the return value is called as a function, so we know that it must be dynamically resolving API through the hashes from its parameters. Since both calls share the same value for the first parameter but different values for the second one, we can assume that the first hash corresponds to a library name, and the second one corresponds to the name of the target API in that library.

 1BOOL __stdcall DllEntryPoint(HINSTANCE hinstDLL, DWORD fdwReason, LPVOID lpReserved)
 2{
 3  v7[0] = v3;
 4  v4 = hinstDLL;
 5  sub_607980(v7, 0);
 6  dword_62B1D4 = mw_API_resolve(-1590620315, 497732535);
 7  if ( !byte_62B028 )
 8  {
 9    if ( hinstDLL != NtCurrentTeb()->ProcessEnvironmentBlock )
10      byte_62B265 = 1;
11    if ( !byte_62B265 )
12    {
13      mw_anti_vm(v7[0]);
14      dword_62B1D4(0);
15    }
16//...[snip]...
17    || (byte_62B004 = 0, (v6 = mw_API_resolve(-1590620315, -1462740277)) != 0)
18    && v6(0, 0, sub_5F5100, hinstDLL, 0, 0) )

Investigation of cross-references (xrefs) to sub_6015C0 reveals that this function is called multiple times throughout the malware’s code, each time with different hash values as parameters. which confirms that our assumption about tecnhique dynamic API resolving

The subroutine first starts with passing the DLL hash to the functions sub_686C50 and sub_687564. The return value and the API hash are then passed into sub_6067C8 as parameters. From this, we can assume the first two functions retrieve the base of the DLL corresponding to the DLL hash, and this base address is passed to the last function with the API hash to resolve the API.

 1int __stdcall mw_API_resolve(int maybe_DLL_hash, int maybe_API_hash)
 2{
 3//...[snip]...
 4v6 = sub_607564(maybe_DLL_hash, maybe_DLL_hash);
 5  if ( !v6 )
 6  {
 7    if ( sub_606C50(maybe_DLL_hash) )
 8      v6 = sub_607564(maybe_DLL_hash, maybe_DLL_hash);
 9  }
10  if ( !v6 )
11    return 0;
12  else
13    return sub_6067C8(v6, maybe_API_hash, v7, v8);
14}

Hashing algorithm

#

sub_607564 is the hashing algorithm. The target API hash is XOR-ed with 0x38BA5C7B before being compared to the hash of each API name

1void *__userpurge sub_607564@<eax>(int maybe_DLL_hash@<eax>, int maybe_API_hash)
2{
3//...[snip]...
4  if ( dll_hash == (sub_61D620(v43, v16) ^ 0x38BA5C7B) )
5//...[snip]...

Depend on constant values being loaded or used in the program can pick out the algorithm.

Among the three constants being used in this function, one stands out with the repetition of the value 0x0EDB8832, which is typically used in the CRC32 hashing algorithm. So, sub_69D620 is a function to generate a CRC32 hash from a given string, and the API hashing algorithm of DRIDEX boils down to XOR-ing the CRC32 hash of API/DLL names with 0x38BA5C7B.

1.rdata:0062A2F0 xmmword_62A2F0  xmmword 3000000020000000100000000h
2.rdata:0062A2F0                                         ; DATA XREF: sub_61D620+11↑r
3.rdata:0062A300 xmmword_62A300  xmmword 1000000010000000100000001h
4.rdata:0062A300                                         ; DATA XREF: sub_61D620+2D↑r
5.rdata:0062A300                                         ; sub_61D620+9A↑r ...
6.rdata:0062A310 xmmword_62A310  xmmword 0EDB88320EDB88320EDB88320EDB88320h

I used hashdb to look up the hashes in the sample. The hash 0x1DAACBB7 corresponds correctly to the ExitProcess API, which confirms that our assumption about the hashing algorithm is correct.

C2 Communication

#

To identify all resolved APIs without manually tracing each hash, I wrote an IDAPython script that extracted all push arguments preceding calls to mw_API_and_DLL_resolve and saved them to a file. Each hash was then resolved against the hashdb API using the XOR key 0x38BA5C7B identified earlier:

 1import requests
 2
 3filename = r"C:\Users\f\Desktop\calls.txt"
 4xor_key = 0x38BA5C7B
 5
 6unique_args = {}
 7
 8with open(filename, "r") as file:
 9    for line in file:
10        parts = line.split()
11        if len(parts) >= 3:
12            addr, dll_h, api_h = parts[0], int(parts[1]), int(parts[2])
13            for h in [dll_h, api_h]:
14                if h not in unique_args:
15                    unique_args[h] = set()
16                unique_args[h].add(addr)
17
18for hash_value in sorted(unique_args):
19    response = requests.get(
20        f"https://hashdb.openanalysis.net/hash/crc32/{str(hash_value ^ xor_key)}"
21    )
22    if response.status_code == 200:
23        data = response.json()
24        if data.get("hashes"):
25            name = data["hashes"][0]["string"]["string"]
26            addrs = ", ".join(sorted(unique_args[hash_value]))
27            print(f"Found: {name} @ {addrs}")

The full WinINet call chain was recovered, confirming a complete HTTP-based C2 communication stack:

1Found: InternetOpenA        @ 0x00623238
2Found: InternetConnectW     @ 0x0062346C
3Found: HttpOpenRequestW     @ 0x00623508
4Found: HttpSendRequestW     @ 0x0062388E
5Found: InternetReadFile     @ 0x00623AD6
6Found: HttpQueryInfoW       @ 0x0062392F, 0x00623985, 0x006239DE
7Found: InternetSetOptionW   @ 0x006235FF, 0x00623622, 0x0062367B
8Found: InternetQueryOptionW @ 0x0062364D
9Found: InternetCloseHandle  @ 0x0062327D, 0x0062330D, ...

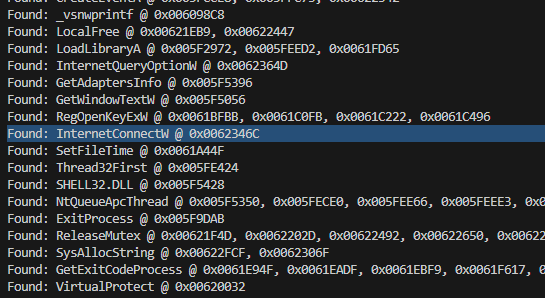

The function responsible for C2 connection is at 0x00623370 (InternetConnectW), and the module download function is at 0x00623820 (InternetReadFile).

Resolved API Analysis

#

The full resolved API list revealed several additional capability clusters beyond the C2 stack.

Process injection — a complete injection toolkit using Nt* functions directly from NTDLL to bypass higher-level API monitoring: NtAllocateVirtualMemory, NtWriteVirtualMemory, NtReadVirtualMemory, NtProtectVirtualMemory, NtMapViewOfSection, NtUnmapViewOfSection, NtCreateSection, RtlCreateUserThread, NtQueueApcThread, NtResumeThread.

Registry persistence — RegCreateKeyExW, RegSetValueExA, RegLoadKeyW, RegUnLoadKeyW, RegOpenKeyExW, RegQueryValueExW/A indicate reading and writing of registry keys including hive load/unload operations — NTUSER.DAT was also present in the decrypted strings.

Cryptography — CryptAcquireContextW, CryptGenRandom, CryptCreateHash, CryptHashData, CryptGetHashParam, CryptDestroyHash indicate use of the Windows CryptoAPI for key generation or data hashing separate from the RC4 string encryption.

Process and memory enumeration — K32GetProcessImageFileNameW, K32EnumProcessModulesEx, K32GetModuleBaseNameW, NtQuerySystemInformation, NtQueryVirtualMemory, CreateToolhelp32Snapshot, Thread32First, Thread32Next point to thorough process and module scanning consistent with injection target selection.

Inter-process atom communication — GlobalAddAtomW, GlobalGetAtomNameA/W, GlobalDeleteAtom are used for stealthy inter-process signaling without named pipes or sockets.

COM usage — CoCreateInstance, CoInitializeEx, CoUninitialize suggest use of COM objects, possibly for IWebBrowser2-based form grabbing consistent with Dridex’s known banking capabilities.

Exception Handler

#

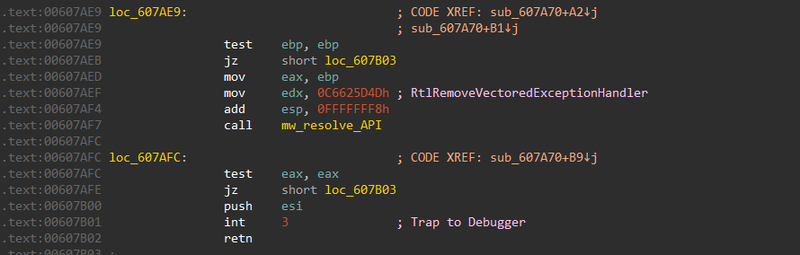

The sample does not use the call instruction to call APIs. Instead, the malware uses a combination of int3 and retn instructions to call its Windows APIs after dynamically resolving them.

The function sub_607980 dynamically resolves RtlAddVectoredExceptionHandler and calls it to register sub_607D40 as a vectored exception handler. This means that when the program encounters an int3 instruction, sub_607D40 is invoked by the kernel to handle the interrupt and transfer control to the API stored in eax.

 1LABEL_9:
 2    v8 = mw_DLL_base(0x588AB3EA, 0x588AB3EA);
 3    if ( !v8 && sub_606C50(NTDLL_DLL) )
 4      v8 = mw_DLL_base(0x588AB3EA, 0x588AB3EA); // NTDLL.DLL
 5    if ( v8 )
 6      v9 = mw_API_resolve(v8, 0x82115E73, v10, v11);// RtlAddVectoredExceptionHandler
 7    else
 8      v9 = nullptr;
 9LABEL_12:
10    n787139894 = sub_607A60(v9);
11    byte_62B26C = 0;
12  }

sub_607D40 handles three exception codes:

 1int __stdcall sub_607D40(int **a1)
 2{
 3  v1 = **a1;
 4  if ( v1 == 0xC0000005 || v1 == 0xC00000FD || v1 == 0xC0000374 )
 5  {
 6    //...[snip]...
 7    kernel32_base = mw_DLL_base(0xA1310F65, 0xA1310F65);
 8    if ( !kernel32_base )
 9    {
10      if ( sub_606C50(0xA1310F65) )
11        kernel32_base = mw_DLL_base(0xA1310F65, 0xA1310F65);// KERNEL32.DLL
12    }
13    if ( kernel32_base )
14    {
15      TreminateProcess = mw_API_resolve(kernel32_base, 0x93FAE3F6, v7, v8);// TreminateProcess
16//...[snip]...
17        __debugbreak();
18        return TreminateProcess;

For these exceptions, the handler dynamically resolves an API using module hash 0xA1310F65(KERNEL32.DLL) and function hash 0x93FAE3F6(TerminateProcess)

For STATUS_BREAKPOINT (0x80000003), the handler manually patches the exception context record, advancing EIP past the breakpoint and adjusting the stack before returning EXCEPTION_CONTINUE_EXECUTION (-1):

 1//...[snip]...
 2  else if ( v1 = 0x80000003 )
 3  {
 4    ++a1[1][46];
 5    a1[1][49] -= 4;
 6    *a1[1][49] = a1[1][46] + 1;
 7    a1[1][49] -= 4;
 8    *a1[1][49] = a1[1][44];
 9    return -1;
10  }

This is a known anti-debugging technique: by silently swallowing STATUS_BREAKPOINT, DRIDEX neutralizes software breakpoints set by a debugger, allowing execution to continue transparently from the next instruction.

Anti-VM

#

The callback function sub_5F5100 called mw_anti_vm(), resolved two APIs via hash, then performed an unconditional jmp to a resolved address — consistent with a stager or loader pattern that transfers execution to unpacked code:

1void __cdecl sub_5F5100(int a1)
2{
3  int v1; // [esp+0h] [ebp-8h]
4
5  mw_anti_vm();
6  v1 = mw_API_resolve(-1590620315, -169236058);
7  mw_API_resolve(-1590620315, -1206567270);
8  __asm { jmp     [ebp+var_8] }
9}

mw_anti_vm() implemented an execution delay loop that ran up to 199,999,100 iterations, calling OutputDebugStringA and Sleep(0xA) repeatedly — a common sandbox evasion technique designed to exhaust sandbox time limits:

 1while ( 1 )
 2{
 3  sub_615CB0(20, 80);
 4  OutputDebugStringA(lpOutputString[0]);
 5  Sleep(0xAu);
 6  sub_610B10(lpOutputString);
 7  if ( ++v1 >= 199999100 )
 8    break;
 9  while ( v1 >= 4987 )
10  {
11    if ( ++v1 >= 199999100 )
12    {
13      OutputDebugStringA(v75);
14      goto LABEL_9;
15    }
16  }

Strings Encryption

#

capa identified RC4 encryption capabilities in the binary:

1encrypt data using RC4 KSA
2namespace  data-manipulation/encryption/rc4
3scope      function
4matches    0x61E5D0
5
6encrypt data using RC4 PRGA
7namespace  data-manipulation/encryption/rc4
8scope      function
9matches    0x61E5D0

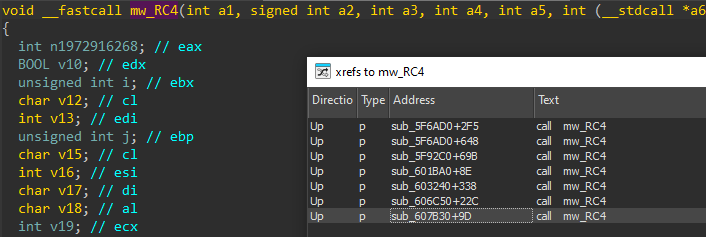

I renamed 0x61E5D0 to mw_RC4. The signed int a2 parameter may indicates the key length:

1void __fastcall mw_RC4(int a1, signed int a2, int a3, int a4, int a5, int (__stdcall *a6)(int, int), int a7)

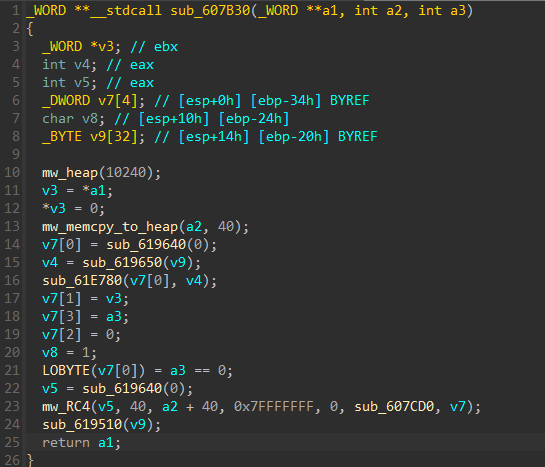

Tracing the callers of mw_RC4 confirmed the key length is 40 bytes — passed as the second parameter. Before the key is applied, sub_61E780 performs a byte-reversal on the key bytes:

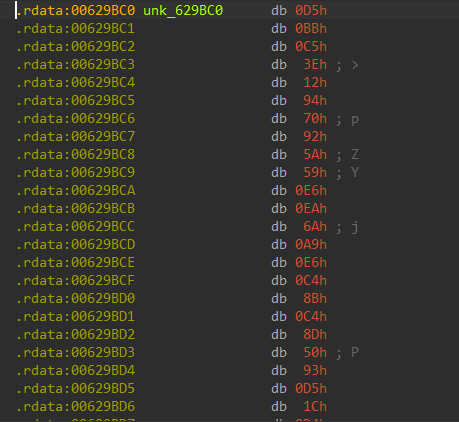

Following the call chain to identify the encrypted data source, I found that sub_607B30 is called with &unk_629BC0 as the data parameter:

1_WORD **__fastcall sub_5FAC00(_WORD **a1, int a2)
2{
3  sub_607B30(a1, &unk_629BC0, a2);
4  return a1;
5}

The RC4 key (before reversal) is:

1D5BBC53E129470925A59E6EA6AA9E6C48BC48D5093D51CD433884126BAE4A81560E7B19148933CDB

After accounting for the byte-reversal and decrypting, the plaintext strings from 0x629BC0 were recovered:

 1Program Manager
 2Progman
 3AdvApi32~PsApi~shlwapi~shell32~WinInet
 4/run /tn "%ws"
 5"%ws" /grant:r "%ws":F
 6\NTUSER.DAT
 7winsxs
 8x86_*
 9amd64_*
10*.exe
11\Sessions\%d\BaseNamedObjects\

These strings reveal the malware’s targets and internal logic: AdvApi32~PsApi~shlwapi~shell32~WinInet is a tilde-delimited list of DLLs the malware dynamically resolves, Program Manager / Progman indicate process or window targeting, and the schtasks /run /tn "%ws" template suggests scheduled task abuse for execution or persistence.

IOCs

#

Files
- malware.dll
- MD5: df1b0f2d8e1c9ff27a9b0eb50d0967ef
- SHA256: f9495e968f9a1610c0cf9383053e5b5696ecc85ca3ca2a338c24c7204cc93881

Network
- C2: 192.46.210.220:443
- C2: 143.244.140.214:808
- C2: 45.77.0.96:6891
- C2: 185.56.219.47:8116

Encryption
- Algorithm: RC4
- Key (pre-reversal): D5BBC53E129470925A59E6EA6AA9E6C48BC48D5093D51CD433884126BAE4A81560E7B19148933CDB
- CAPEv2 key: 9fRysqcdPgZffBlroqJaZHyCvLvD6BUV

Attack Flow

#

%%{init: {'theme': 'base', 'themeVariables': { 'background': '#ffffff', 'mainBkg': '#ffffff', 'primaryTextColor': '#000000', 'lineColor': '#333333', 'clusterBkg': '#ffffff', 'clusterBorder': '#333333'}}}%%
graph TD
    classDef default fill:#f9f9f9,stroke:#333,stroke-width:1px,color:#000;
    classDef input fill:#e1f5fe,stroke:#0277bd,stroke-width:2px,color:#000;
    classDef check fill:#fff9c4,stroke:#fbc02d,stroke-width:2px,stroke-dasharray: 5 5,color:#000;
    classDef exec fill:#ffebee,stroke:#c62828,stroke-width:2px,color:#000;
    classDef term fill:#e0e0e0,stroke:#333,stroke-width:2px,color:#000;

    Load([malware.dll Loaded
DllEntryPoint]):::input --> APIResolve[Dynamic API Resolution
CRC32 XOR 0x38BA5C7B]:::exec

    subgraph Evasion [Evasion]
        APIResolve --> VEH[Register VEH
RtlAddVectoredExceptionHandler]:::exec
        VEH --> Int3[int3 + retn
Indirect API Calls]:::exec
        Int3 --> AntiVM{Anti-VM
Execution Delay Loop
199,999,100 iterations}:::check
        AntiVM -.->|Timeout / VM| Exit[Exit]:::term
        AntiVM -- Pass --> HeavensGate[Heaven's Gate
32-bit → 64-bit switch]:::exec
    end

    subgraph Init [Initialization]
        HeavensGate --> RC4[RC4 String Decryption
40-byte reversed key]:::exec
        RC4 --> Strings["Program Manager, Progman
AdvApi32~PsApi~shlwapi~shell32~WinInet
NTUSER.DAT, schtasks /run /tn"]:::exec
        Strings --> Loader[sub_5F5100
Resolve APIs + jmp to unpacked code]:::exec
    end

    subgraph Persistence [Persistence]
        Loader --> Reg[Registry R/W
RegCreateKeyExW / RegSetValueExA]:::exec
        Loader --> Hive[Offline Hive Manipulation
RegLoadKeyW / NTUSER.DAT]:::exec
        Loader --> Task[Scheduled Task
schtasks /run /tn]:::exec
    end

    subgraph Injection [Process Injection]
        Loader --> Enum[Process Enumeration
Toolhelp32 / NtQuerySystemInformation]:::exec
        Enum --> Target[Select Injection Target]:::exec
        Target --> Alloc[NtAllocateVirtualMemory
NtWriteVirtualMemory]:::exec
        Alloc --> Protect[NtProtectVirtualMemory
NtMapViewOfSection]:::exec
        Protect --> Thread[RtlCreateUserThread
NtQueueApcThread / NtResumeThread]:::exec
    end

    subgraph C2 [C2 Communication]
        Thread --> IOpen[InternetOpenA]:::exec
        IOpen --> IConnect[InternetConnectW
0x00623370]:::exec
        IConnect --> IRequest[HttpOpenRequestW
HttpSendRequestW]:::exec
        IRequest --> IRead[InternetReadFile
0x00623820
Download modules]:::exec
        IRead --> IP1((192.46.210.220:443)):::exec
        IRead --> IP2((143.244.140.214:808)):::exec
        IRead --> IP3((45.77.0.96:6891)):::exec
        IRead --> IP4((185.56.219.47:8116)):::exec
    end

    subgraph Banking [Banking Capabilities]
        Thread --> COM[CoCreateInstance
IWebBrowser2 Form Grabbing]:::exec
        Thread --> Atoms[GlobalAddAtomW
Inter-process Signaling]:::exec
        Thread --> Crypt[CryptoAPI
CryptGenRandom / CryptHashData]:::exec
    end
